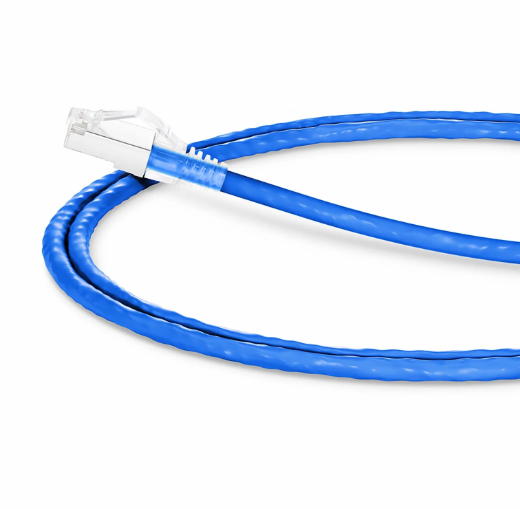

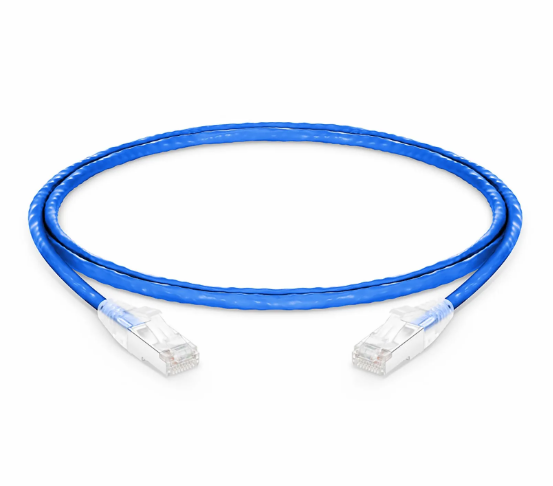

Cat5e Snagless Shielded (F/UTP) PVC CM 3ft (0.9m) Ethernet Network Patch Cable, Blue
Cat5e network patch cable is the cost-effective solution for indoor Gigabit Ethernet data center applications, supporting up to 1000Mb/s and 350MHz within 100 meters of cable. And it is fully backward compatible with all the previous categories.
● Product origin: China
● Delivery time: 7 -10 workdays
The skywardcable cat5e patch cables conductor apply Pure Bare Copper with high electrical conductivity and low signal transmission attenuation. The shielded patch cord provides superior alien crosstalk (AXT) suppression and protects critical data from electromagnetic and radio frequency interference (EMI/RFI). The sheath material is new environmentally friendly material PVC CM, which is durable, flame-retardant, resistant to bending. Stranded copper patch cable can be used with a longer flex-life. Tested and verified to meet Cat5e component requirements for ANSI/TIA-568.2-D and ISO/IEC 11801 standards. The cable supports PoE to save you the expense and effort of powering PoE devices individually. You can also install PoE devices in locations distant from power outlets, such as high on walls, ceilings or poles.
| Cable Type | Cat5e Snagless | Shielding Type | Shielded (F/UTP) |
| Cable jacket | PVC CM (Round) | Cable Length | 3ft (0.9m) (including Plugs) |
| Data Rate Support | 1000Base-T | Maximum (Tested) Frequency | 350MHz |
| Gauge (AWG) | 26 (7/0.16mm) | Twisted Pairs | 4 Pairs |
| Max Transmission Distance | 100m | Cable Outer Diameter (mm) | 5.3 ± 0.4 |
| Wire Scheme | T568B, Straight | Standard | ISO/IEC 11801, ANSI/TIA-568.2-D |
| Plug Type | 8 Position | Conductor Type |
Stranded
|
| Operating Temperature | -20 to 75°C (-4 to 167°F) | Installation Temperature | -10 to 50°C (-14 to 122°F) |
